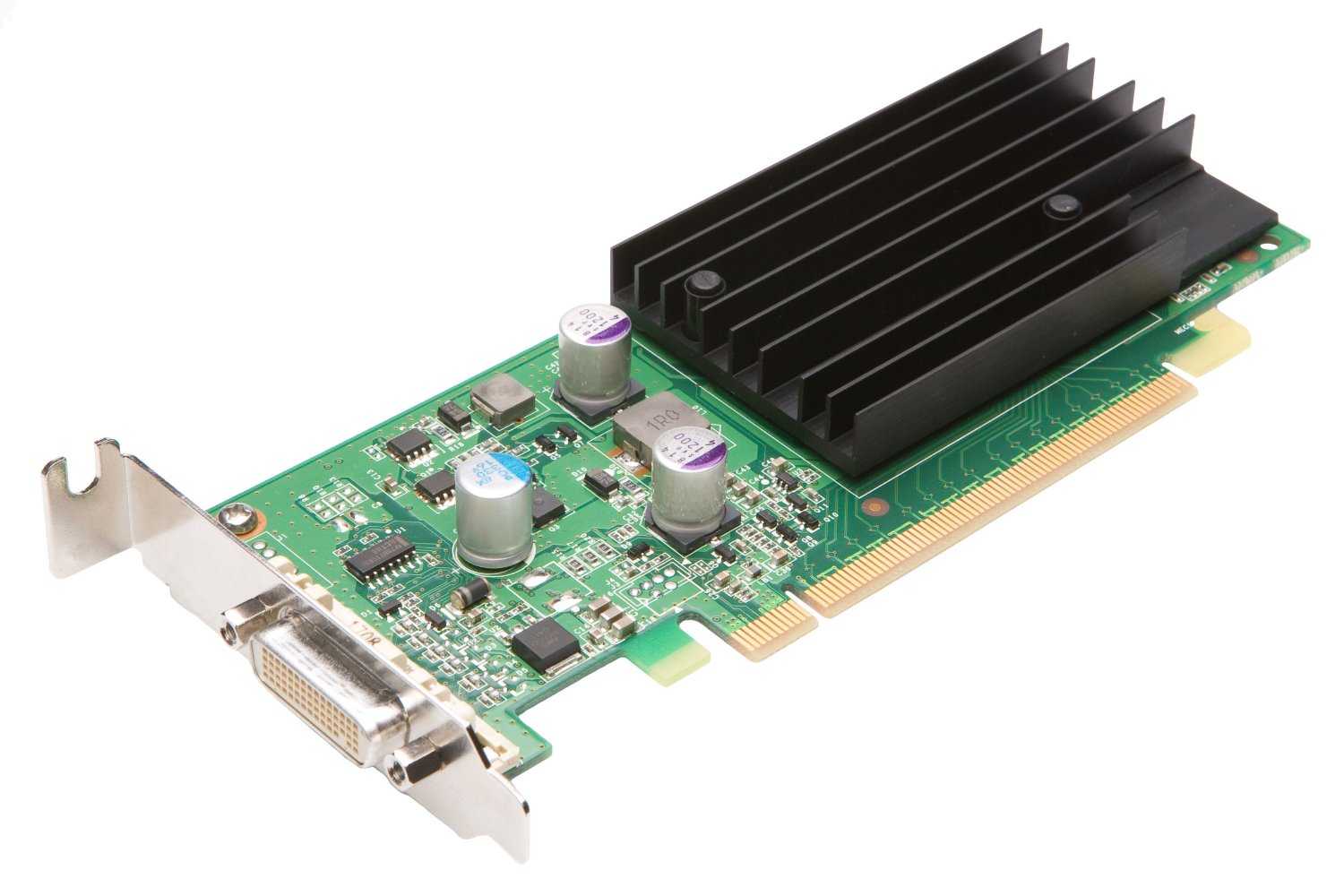

PNY 600-50805-1701-000 Quadro FX 370 LP 256 MB DVI-I DP PCI Express x16 Video Card Low Profile

NVIDIA Quadro FX 370 Low Profile by PNY – Unprecedented Performance, Breakthrough Price
Now the performance, stability and professional features of NVIDA Quadro by PNY professional workstation graphics are available for small form factor desktop systems at a breakthrough price. Featuring NVIDIA CUDA™ parallel computing capabilities and certified on leading professional applications, the Quadro FX 370 Low Profile is designed to meet stringent performance and reliability requirements while staying within your budget.

The unified architecture Quadro FX 370LP GPU dynamically allocates geometry, shading, and compute processing power to deliver optimized graphics performance. The 256MB GDDR2 frame buffer makes the FX 370 Low Profile Microsoft^® Vista™ ready and capable of displaying the full Windows Aero user interface. Shader Model 4.0 enables next generation ultra-realistic, real-time OpenGL and DirectX 10 applications. The FX 370 Low Profile can drive digital displays at resolutions up to 1920 x 1200 at 60Hz and analog displays at resolutions up to 2040 x 1536 at 85Hz.

Memory Size	256MB GDDR2
Memory Interface	64-bit
Memory Bandwidth	8.0GB/sec
Max Power Consumption	25W
Number of Slots	1
Display Connectors	DMS-59
Single-Link DVI	2 (with supplied adapter cable)
VGA	2 (with supplied adapters)

Product Specifications

• Physical dimensions: SFF form factor, 2.731 inches x 6.60 inches, single slot
• Frame buffer memory: 256MB GDDR2
• Memory interface: 64-bit
• Memory bandwidth: 8.0GB/sec
• Maximum power consumption: 25W
• Graphics bus: PCI Express x16
• Display connector: DMS-59
• Single-link DVI-I: Yes (2), with supplied adapter cable
• VGA: Yes (2), with supplied adapters
• Number of slots: 1
• Thermal solution: Passive heatsink

NVIDIA Quadro FX 370 Low Profile by PNY Architecture

• 128-bit color precision
• Unlimited fragment instruction
• Unlimited vertex instruction
• 3D volumetric texture support
• Hardware accelerated antialiased points and lines
• Hardware OpenGL overlay planes
• Hardware accelerated two-sided lighting
• Hardware accelerated clipping planes
• 3rd generation occlusion culling
• Window ID clipping functionality
• Hardware accelerated line stippling

Shading Architecture

• Full Shader Model 4.0 (OpenGL 2.1/DirectX 10 class)
• Long fragment programs (unlimited instructions)
• Long vertex programs (unlimited instructions)
• Looping and subroutines (up to 256 loops per vertex program)
• Dynamic flow control
• Conditional execution

High Level Shader Languages

• Optimized complier for Cg and Microsoft HLSL
• OpenGL 2.1 and DirectX 10 support
• Open source compiler

High-Resolution Antialiasing

• Rotated Grid Full-Scene Antialiasing (RG FSAA)
• 16x FSAA dramatically reduces visual aliasing artifacts or "jaggies" at resolutions up to 1920 x 1200

Display Resolution Support

• Single-link DVI-I drives digital displays at resolutions up to 1920 x 1200 at 60Hz
• Internal 400MHz DACs drive two analog displays up to 2048 x 1536 at 85Hz

NVIEW Architecture

• Advanced multi-display desktop and application management seamlessly integrated into Microsoft Windows

Minimum System Requirements

• Windows^® 7, Vista, XP SP3, Linux^®, or Solaris^®

• PCIe x16 expansion slot

• 1GB or more of system memory, 2GB recommended

• 200MB of available disk space for full driver installation

• Blu-ray, DVD-ROM or CD-ROM drive

• DisplayPort, DVI or VGA compatible display(s)
